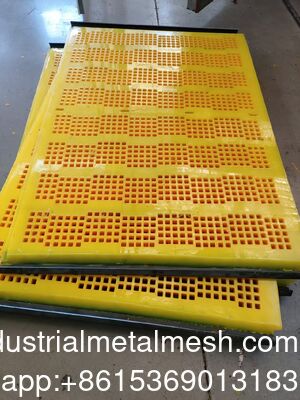

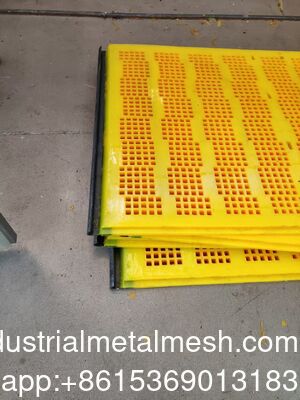

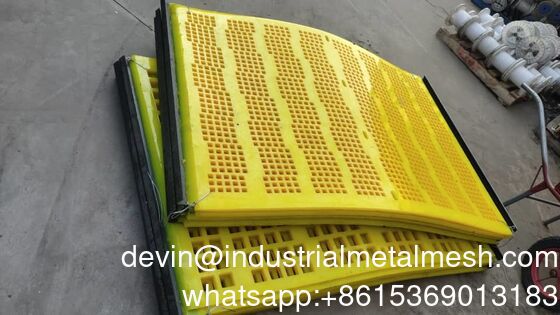

60A 305*305mm Washing Coal PU Screen Panel
Polyurethane Screen for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.
Special Specification can also be customized according to customer's requirements.
Modular Polyurethane Screens Panels
| Modular PU Screen Panels |
|
Overall
Sizes
mm
|
Aperture
mm
|
Opening Angle |
Height of screening
Area mm
|
Thickness
mm
|
Hardness
|
| 305x305x30 |
0.3 |
11-25 |
11 |
30 |
HS60-85 |
| 305x305x30 |
0.5 |
11-25 |
11 |
30 |
HS60-85 |
| 305x305x30 |
0.75 |
11-25 |
11 |
30 |
HS60-85 |
| 305x305x30 |
1 |
11-25 |
11 |
30 |
HS60-85 |
| 305x305x30 |
1.5 |
11-25 |
12 |
30 |
HS60-85 |
| 305x305x30 |
2 |
11-25 |
12 |
30 |
HS60-85 |
| 610x305x45 |
0.3 |
11-25 |
11 |
45 |
HS60-85 |
| 610x305x45 |
0.5 |
11-25 |
11 |
45 |
HS60-85 |
| 610x305x45 |
0.75 |
11-25 |
11 |
45 |
HS60-85 |
| 610x305x45 |
1 |
11-25 |
11 |
45 |
HS60-85 |
| 610x305x45 |
1.5 |
11-25 |
12 |
45 |
HS60-85 |
| 610x305x45 |
2 |
11-25 |
12 |
45 |
HS60-85 |
Features:
1. Highly elastic and can be installed easily
2. Light weighted and improved durability
3. Impact proof body and compact design
4. Reduces noise and can withstand high temperature
Material: Steel wire inside and polyurethane outside.
Thickness: 20mm - 60mm.
Opening size: 0.6mm - 160mm.
Screen type: Modular polyurethane screening and tensioned polyurethane panels.
Hole type: Comb, square, oblong, round, fine mesh sieve screen.
Connection types: Mosaic, bolt, layering connection, screen hook connection
Characteristics:
System screen modules are fixed to the substructure bars by means of adapter slats, thus making it compatible to other types of modular systems. there are system units with standard widths of 150 and 300 mm and flexible lengths of up to 1200 mm, all made of highly wear resistant polyurethane.
Application:
Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.
Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.
Product Parameters
| Specification(MM) |
Aperture(MM) |
Weight(KG) |
| 300*610 |
0.2 0.3 0.5 0.7
0.8 1.0 1.2 1.5 2.0 2.5 3
The aperture can be customized |
5kg/m2-10kg/m2 |
| 305*610 |
| 300*800 |
| 300*1220 |
| 610*610 |
| Mark: Other size can be customed |
Features
1.Polyurethane linear dewatering screen panels have the advantages of light weight, small load, small power consumption of screen machine, good dehydration effect, high processing capacity, high production efficiency, low noise, high efficiency, energy saving, environmental protection, high opening rate, etc.
2.It is a suitable product for dehydration and medium removal.
3.Polyurethane products can save energy, reduce consumption and increase benefit for the enterprises.
Advantages
- Multiple fixing systems
- Modular design with apertures ranging from 0.2mm to 100mm
- Cross tensioned
- Multiple panel configurations such as solid, slotted, square, round, ribbed, rectangular, S-modular and VR
- Available with options such as L shape, carrier bars, flow restrictions and drainage deflectors
- Manufactured in range of custom color options
- Over 250 modular panel variations
- Custom options available. Equivalents to most OEM suppliers.
- Available in varying thicknesses from 30mm to 80mm.
