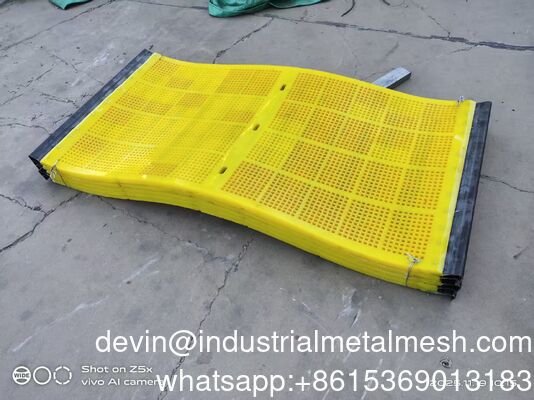

Mining & coal Vibrating Screen Polyurethane Flip Flow Screen Mesh
PU-Mesh (polyurethane mesh) is made of abrasion-resistant polyurethane materials with a steel wire structure embedded. PU Screen Mesh comes in square or slotted openings in either fully welded or partially welded style. Polyurethane screen mesh offers improved efficiency compared with traditional wire screens, with higher durability, and longer wear life at much lower maintenance costs. PU screen mesh is an extremely cost-effective screening solution for a wide variety of difficult applications, especially for wet or high-humidity screening. The proprietary design makes the urethane screens extremely light, flexible, and easy to install. It has excellent performance in a harsh environment with good resistance to various acids, alkalis, and organic solvents.
Specification of Square Polyurethane Screen Mesh
| Item No. |
Opening (mm) |
Wire Size (mm) |
| 1 |
1.5 |
1.5 |
| 2 |
3 |
1.5 |
| 3 |
2 |
1.6 |
| 4 |
2 |
1.6 |
| 5 |
2.3 |
1.6 |
| 6 |
2.5 |
1.6 |
| 7 |
2.8 |
1.6 |
| 8 |
3 |
1.6 |
| 9 |
3 |
1.6 |
| 10 |
3.5 |
1.6 |
| 11 |
2.3 |
2 |
| 12 |
3 |
2 |
| 13 |
3.5 |
2 |
| 14 |
4 |
2 |
| 15 |
4 |
2 |
| 16 |
4.3 |
2 |
| 17 |
3 |
2.5 |
| 18 |
3.2 |
2.5 |
| 19 |
3.5 |
2.5 |
| 20 |
3.5 |
2.5 |
| 21 |
4 |
2.5 |
| 22 |
5 |
2.5 |
| 23 |
5 |
2.5 |
| 24 |
5 |
2.5 |
| 25 |
5.5 |
2.5 |
| 26 |
6 |
2.5 |
| 27 |
3 |
3 |
| 28 |
4 |
3 |
| 29 |
4 |
3 |
| 30 |
4.76 |
3 |
| 31 |
5 |
3 |
| 32 |
6 |
3 |
| 33 |
6 |
3 |
| 34 |
7 |
3 |
| 35 |
7 |
4 |
| 36 |
7.1 |
4 |
| 37 |
7.2 |
4 |
| 38 |
8 |
4 |
| 39 |
8 |
4 |
| 40 |
9 |
4 |
| 41 |
9.53 |
4 |
| 42 |
10 |
4 |
| 43 |
10 |
4 |
| 44 |
10 |
5 |
| 45 |
11 |
5 |
| 46 |
12 |
5 |
| 47 |
13 |
5 |
| 48 |
14 |
5 |
| 49 |
15 |
5 |
| 50 |
16 |
5 |
| 51 |
10 |
6 |
| 52 |
11 |
6 |
| 53 |
12 |
6 |
| 54 |
30 |
6 |
| 55 |
12 |
6 |
| 56 |
15 |
6 |
| 57 |
18 |
6 |
| 58 |
18 |
6 |
| 59 |
21 |
6 |
| 60 |
22 |
6 |
| 61 |
23 |
6 |
| 62 |
14 |
8 |
| 63 |
36 |
8 |
| 64 |
20 |
8 |
| 65 |
21 |
8 |
| 66 |
22 |
8 |
| 67 |
22.23 |
8 |
| 68 |
23 |
8 |
| 69 |
23 |
8 |
| 70 |
24 |
8 |
| 71 |
25 |
8 |
| 72 |
27 |
8 |
| 73 |
28 |
8 |
| 74 |
28.58 |
8 |
| 75 |
24.61 |
9.53 |
| 76 |
25.4 |
9.53 |
| 77 |
21 |
10 |
| 78 |
22 |
10 |
| 79 |
24 |
10 |
| 80 |
32 |
10 |
| 81 |
35 |
10 |
| 82 |
38 |
12 |
| 83 |
40 |
12 |
| 84 |
50 |
14 |
PU Mesh Material
Polyurethane screen mesh is a type of material used in the construction of screening devices, such as vibrating screens, trommel screens, and dewatering screens. It is a synthetic material that is made from polyurethane, a polymer that is known for its toughness and elasticity. It is also resistant to chemicals and UV radiation, which helps to extend its lifespan and maintain its performance over time. In addition to its strength and durability, polyurethane screen mesh is also lightweight and flexible, which makes it easy to install and replace when necessary. Its ability to withstand high loads and vibrations, as well as its resistance to clogging and blinding, make it a popular choice for screening operations in industries such as mining, quarrying, and construction. Overall, polyurethane screen mesh is a reliable and cost-effective material that provides excellent screening performance in a range of applications.
Standard Sizes Available
| Model No. |
Size |
| PSM30 |
300x300mm |
| PSM30.5 |
305x305mm |
| PSM61/30.5 |
610x305mm |
| PSM63/30 |
630x300mm |
| PSM30/50 |
300x500mm |
| PSM30/80 |
300x800mm |
| PSM1.22/30 |
1220x300mm |
Customization of polyurethane screen panel for sale
Frame, Opening, Installation style, and dimensions are customizableas per the drawing or requirements.
Product Parameters
| Specification(MM) |
Aperture(MM) |
Weight(KG) |
| 300*610 |
0.2 0.3 0.5 0.7
0.8 1.0 1.2 1.5 2.0 2.5 3
The aperture can be customized |
5kg/m2-10kg/m2 |
| 305*610 |
| 300*800 |
| 300*1220 |
| 610*610 |
| Mark: Other size can be customed |
Features
1.Polyurethane linear dewatering screen panels have the advantages of light weight, small load, small power consumption of screen machine, good dehydration effect, high processing capacity, high production efficiency, low noise, high efficiency, energy saving, environmental protection, high opening rate, etc.
2.It is a suitable product for dehydration and medium removal.
3.Polyurethane products can save energy, reduce consumption and increase benefit for the enterprises.
Advantages
- Multiple fixing systems
- Modular design with apertures ranging from 0.2mm to 100mm
- Cross tensioned
- Multiple panel configurations such as solid, slotted, square, round, ribbed, rectangular, S-modular and VR
- Available with options such as L shape, carrier bars, flow restrictions and drainage deflectors
- Manufactured in range of custom color options
- Over 250 modular panel variations
- Custom options available. Equivalents to most OEM suppliers.
- Available in varying thicknesses from 30mm to 80mm.
