Stainless Steel Welded Wire Mesh for High-Quality Construction

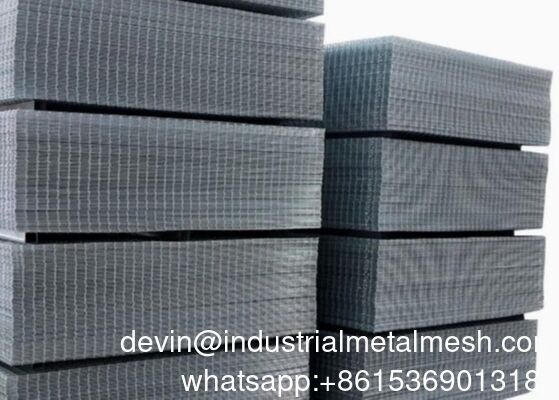

Imagem Grande : Stainless Steel Welded Wire Mesh for High-Quality Construction

Detalhes do produto:

Lugar de origem:	China
Marca:	QiJie
Certificação:	ISO9001:2008, SGS, CE
Número do modelo:	01WWM

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	50 rolos
Preço:	USD9.90-USD45.90
Detalhes da embalagem:	Filme plástico ou papel à prova d’água
Tempo de entrega:	10-25 dias
Termos de pagamento:	TT, LC,
Habilidade da fonte:	1000 rolos/por dia

Contato

Descrição de produto detalhada

Material:	Fio de aço carbono	Abertura de malha:	12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Diâmetro do fio:	0,4 mm - 1,5 mm	Largura do rolo:	0,4m,0,5m,0,6m,0,8m, 1,0m, 1,25m, 1,5m, 2,0m
Comprimento do rolo:	15 milhões, 30 milhões, 50 milhões etc.	Tratamento de superfície:	Galvanizado por imersão a quente ou galvanizado elétrico
Número do modelo:	xx-01001	Aplicativo::	Malha de cerca
E-mail:	devin@industrialmetalmesh.com	WhatsAPP:	+8615369013183
Destacar:	stainless steel welded wire mesh , welded wire mesh for construction , high-quality welded wire mesh

Stainless Steel Welded Wire Mesh for High-Quality Construction

Product Description:

Welded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.
Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications.
Stainless Steel Welded Wire Mesh is a versatile and durable material used in various industries for its strength, corrosion resistance, and adaptability, Whether for security fencing, construction reinforcement, or filtration systems, this welded wire mesh is a go-to choice for projects that require reliability and longevity.
Material: SS304 and SS316, SS201, SS202, SS304L, SS316L
Wire diameter: 0.6mm to 2.6mm
Mesh Opening: 6.4mm to 20mm max.

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

welded wire mesh rolls
Opening	Wire diameter	Available Width
1/4" x 1/4"	0.45mm-0.7mm	300mm-1830mm
3/4" x 3/4"	0.7mm-2.0mm	300mm-1830mm
3/8" x 3/8"	0.7mm-1.1mm	300mm-1830mm
5/8" x 5/8"	0.8mm-1.2mm	300mm-1830mm
1/2" x 1/2"	0.45mm-1.6 mm	300mm-1830mm
1" x 1"	0.7mm-3.0mm	300mm-2000mm
1" x 1/2"	0.8mm-1.6mm	300mm-1828mm
1-1/2" x 1-1/2"	0.7mm-3.5mm	300mm-1828mm
1" x 2"	1.6mm-2.1mm	300mm-1828mm
2" x 2"	0.7mm-4.0mm	300mm-2500mm
2" x 3"	1.5mm-3.5mm	300mm-2000mm
2" x 4"	2.0mm-4.0mm	300mm-1828mm
3" x 3"	1.0mm-4.5mm	300mm-2500mm
3" x 4"	1.5mm-4.5mm	300mm-2000mm
4" x 4"	1.0mm-4.5mm	300mm-2500mm
5" x 5"	2.5mm-4.5mm	300mm-2500mm
6" x 6"	2.5mm-4.5mm	300mm-2500mm

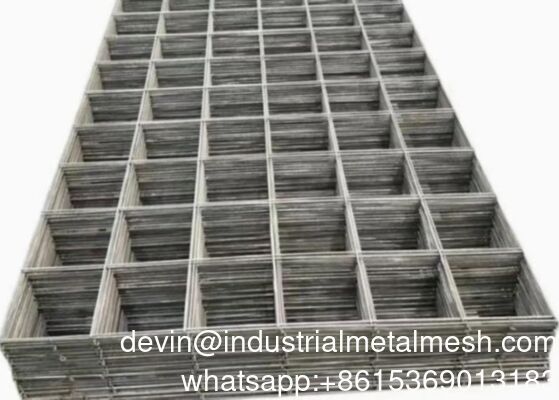

Welded Wire Mesh Panels
Opening	Wire diameter	Available width
1/2" x 1/2"	0.45mm-2.0mm	100mm-1830mm
1" x 1"	0.7mm-3.5mm	100mm-2000mm
1" x1/4"	0.45mm-4.0mm	100mm-2000mm
1x 1/2"	0.45mm-4.0mm	100mm-3600mm
2" x 2"	0.7mm-6.0mm	100mm-3600mm
3" x 3"	1.0mm-7.0mm	100mm-3600mm
4" x 4"	1.0mm-8.0mm	100mm-3600mm
5" x 5"	2.5mm-9.0mm	100mm-3600mm
6" x 6"	2.5mm-10.0mm	100mm-3600mm

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
