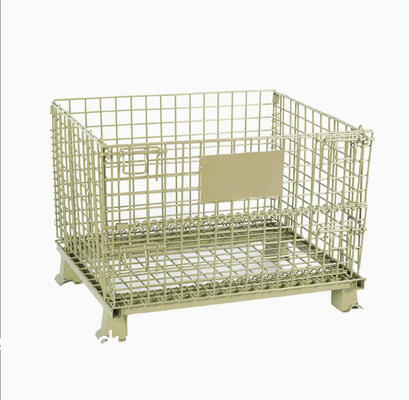

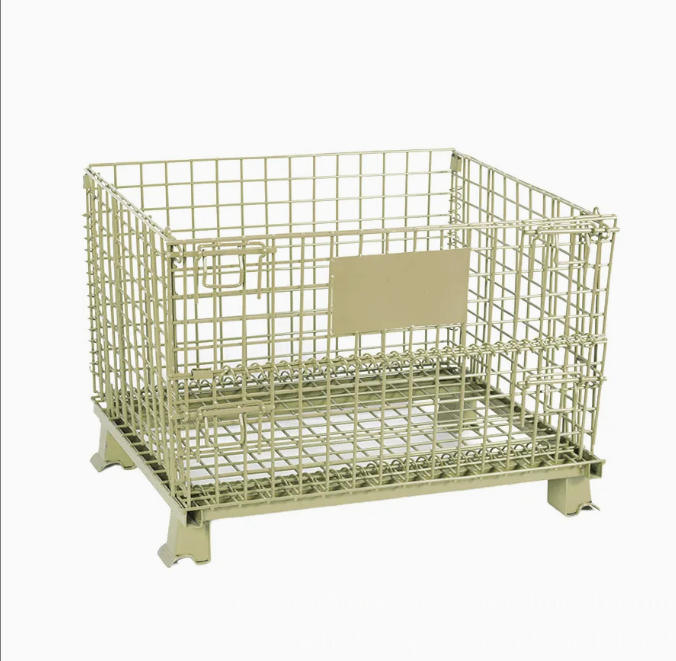

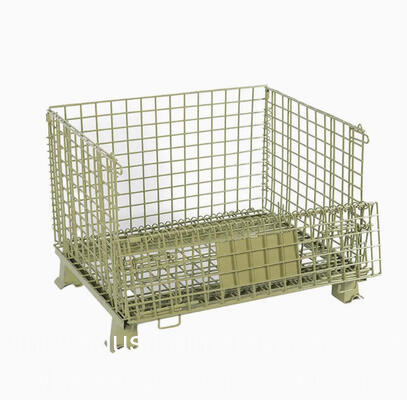

Foldable Galvanized Steel Cages with Welded Wire Mesh, Collapsible Metal Storage Solutions
Wire Mesh Cage is also called as wire container or wire basket, which is durable and stronger, at the same time, it is easy to folding down and stacking high. Because wire container has special strong feet and heavy duty under-sturcture which gives the ability to stack 4 high with heavy loads.Good visibility and same loading space by using wire container make the warehouse management unitized and standard. When unused, the wire container can be folded down to save space.
It is easy for forklift accessing from four sides. Optional accessories include dividers, shelves, card holders, name plates, casters, locking security lid, fork pockets, bar runners for storage on rack beams.
The roll container is great for moving products or stocks from one place to another. This is ideal for ratail bussiness and distribution center. It is suitable for any industrial.
| Size |
1200Lx800Wx1000Hmm(Cusomized) |
Wire gauge |
5-12 mm |
| Mesh size |
Customized |
Load capacity |
800kgs |
| Production |
15-20days normally |
Materials |
Steel Q235 |
| Finish |
Zinc/hot dip galvanized/powder coating |
| Highlights |
1.Stackable for space-saving
2.Fireproof for safety
3.Corrosion protection
4.Various application:Warehouse,supermarket,PET preform,Auto industry,etc.
|
Details of heavy duty collapsible roll cage with wheels.
| Same design, different sizes |
| Model No. |
Exterior Dimension |
Interior High |
Wire Guage |
Grid Size |
Loading Capacity |
Loaded in 1x40'GP |
| |
LxWxH(mm) |
mm |
mm |
mm |
kg |
sets |
| JM-CP001 |
1200x800x1000 |
850 |
¢5-¢12 |
60x103 |
800 |
480 |
| JM-CP002 |
1000x1200x1450 |
1300 |
¢5-¢10 |
60x105 |
1000 |
280 |
| JM-CP003 |
1200x1000x1200 |
1200 |
¢5-¢10 |
60x105 |
800 |
460 |
| JM-CP004 |
1200x1000x1000 |
1000 |
¢5-¢10 |
60x105 |
800 |
480 |
| JM-CP005 |
1200x800x1000 |
1000 |
¢5-¢10 |
60x105 |
800 |
480 |
| Material |
Mild steel Q235 |
| Application area |
Warehouse, logistic, mass retail, recycling industry, etc. |
| Finish |
Zinc/hot dip galvanized/powder coating |
| Remark |
Costomized or OEM support |
| Main Features |
1.Collapsible-save space when not in use,ideal for return journeys
2.Bright electro zinc plated finish
3.Standard half-hinged gate access
4.Long lasting,economical alternative to disposable packing
5.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness.
6.Four-way entry for easy use with lift trucks |
|
storage cage
Warehouse cage, also known as warehouse cage and butterfly cage, is an important kind of logistics container in warehousing and transportation. It has the advantages of fixed storage capacity, neat storage, clear storage, easy inventory counting and so on. At the same time, it also improves the effective utilization of warehouse space. The storage cage can be folded freely and stored when not in use.
Details
1. It is made of high-quality steel and cold-rolled and hardened, with high strength and large loading capacity.
2. Uniform specifications, fixed capacity, storage of goods at a glance, easy to inventory inventory.
3. The surface is galvanized, beautiful and anti-oxidation, and has a long service life.
4. It adopts international standards and can be used with containers to effectively improve space utilization.
5. Can be stacked on top of each other to achieve three-dimensional storage.
6. Environmentally friendly treatment, health immunization, turnover, storage and recycling do not pollute the environment.
7. Efficient operation can be carried out with equipment such as forklifts, cattle, elevators and cranes.
8. The folding structure has low recycling cost and is an alternative to wooden crates.
9. Wheels can be mounted at the bottom, making it easy to turn around inside the factory.
| Exterior dimension |
Wire
Guage
|
Dimension
of Grid
|
Loading
capacity
|
Loaded in
1*40'GP
|
| LxWxH(mm) |
mm |
mm |
kg |
sets |
| 1030x840x850 |
6 |
50*50 |
1300 |
470 |
| 1030x840x850 |
6 |
50*50 |
800 |
470 |
| 1230x1040x890 |
6.2 |
50*50 |
1700 |
320 |
| 1230x1040x900 |
6.2 |
50*50 |
1200 |
320 |
| 1230x1040x950 |
6.2 |
50*50 |
1700 |
320 |
| 1030x840x500 |
6 |
50*50 |
800 |
470 |
| Mild steel Q235 |
| Top lid/bar runner/forklift guide/with inner divider |
| Wheels/inner PP sheet or PP hollow sheet/bag |
| Warehouse, logistic, recycling industry |
| Zinc/hot dip galvanized/powder coating |
| Customized or OEM support |
|
1.Collapsible-save space when not in use, ideal for return journeys
2.Standard half-hinged gate access
3.Square-stack leg - secure stacking
4.Open wire mesh design allows for full visibility for inventory checks,
ventilation and cleanness.
5. Easily moved around by forklift, even when fully loaded
|
Features
I. Sliding locking handles hold drop side securely.
2. The "U" formed base channels welded by welding robots, ensuring welding quality and strong capacity.
3. Spiral hinge wire improves side panel steady and collapsible, foldable flat to save space.
4. Double welded wire construction to reinforce side panel for stack safety.
5. Arched steel legs design increase strength and aid stack high and steady.
6. "U" formed construction is welded underneath the side panel to avoid sliding.
7. Fasteners are used to joint side panels together, ensuring durability.
8. "U" formed loops work with handles to fix up the side panel and drop gates.
9. Holes punched on the U formed base channels for fixing the casters.
10. Steel name plate.
Advantages of foldable steel container:
1) Widely used in warehouse storage, and also in cargo transportation and transit.
2) Made of high-quality steel materials, stable and safe.
3) Heavy-duty, loading capacity 500-2500kg.
4) Can be stacked to over 4 layers, saved 20% of storae space
5) Suitable for forklifts operation.
6) Foldable / Collapsible, when not in use, to save storage space.
Packaging:
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Delivery:
7-15 days
