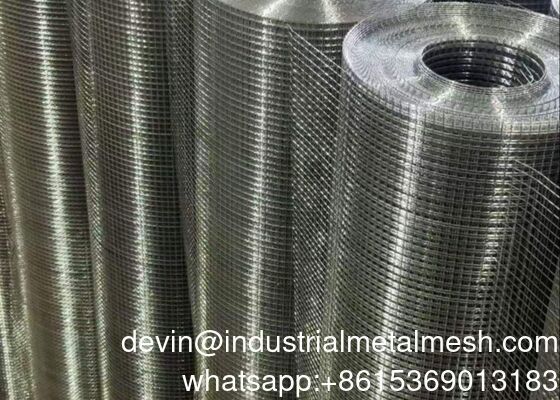

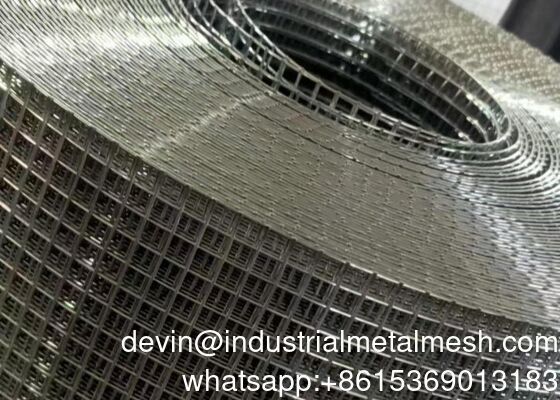

Welded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.
specification:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Specification of Welded Wire Mesh | | Hole Size | Wire
Diameter | Wide |
Electric galvanized before welded,
Electric galvanized after welded,
Hot dipped galvanized before welded,
Hot dipped galvanized after welded,
PVC coated,
Stainless steel wire
(SUS304,SUS316,SUS316L); | | In inch | In metric unit | | 1/4''X1/4'' | 6.4mmX6.4mm | BWG24-22 | 0.3-2.5m | | 1/4''X1/2'' | 6.4mmX12.7mm | BWG24-22 | 0.3-2.5m | | 1/4''X1'' | 6.4mmX25.4mm | BWG24-22 | 0.3-2.5m | | 1/3''X1/3'' | 8.5mmX8.5mm | BWG24-18 | 0.3-2.5m | | 3/8''X3/8'' | 9.5mmX9.5mm | BWG22-19 | 0.3-2.5m | | 1/2''X1/2'' | 12.7mmX12.7mm | BWG23-16 | 0.3-2.5m | | 3/4''X3/4'' | 19.1mmX19.1mm | BWG21-16 | 0.3-2.5m | | 1/2''X1'' | 12.7mmX25.4mm | BWG21-16 | 0.3-2.5m | | 1-1/2''X1-1/2'' | 38mmX38mm | BWG19-14 | 0.3-2.5m | | 1''X1'' | 25.4mmX25.4mm | BWG19-14 | 0.3-2.5m | | 2''X2'' | 50.8mmX50.8mm | BWG15-12 | 0.3-2.5m | | 4''X4'' | 101.6mmX101.6mm | BWG15-12 | 0.3-2.5m | | Note: Special specification can be made according to customer's requires. |
|
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.
