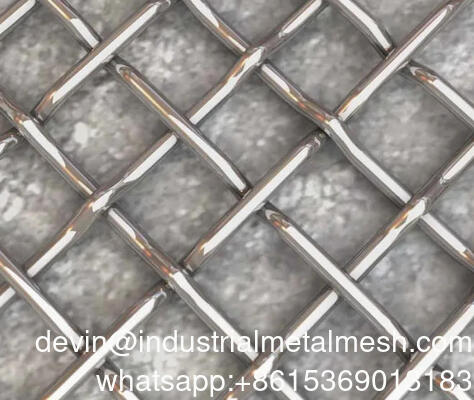

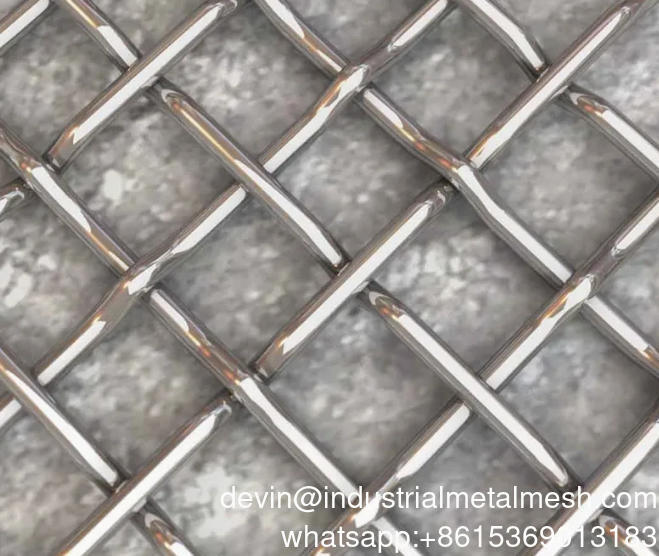

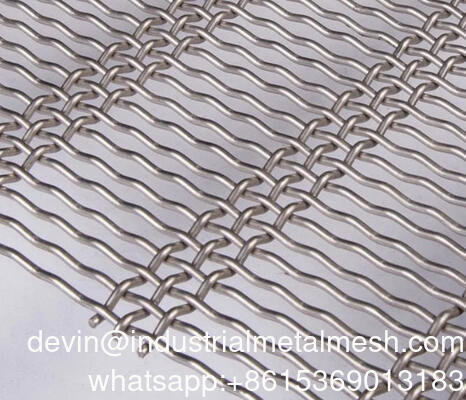

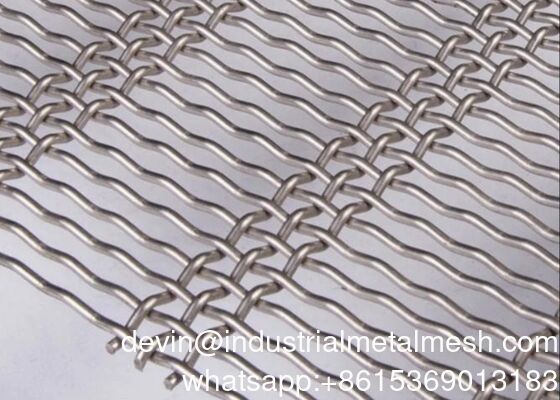

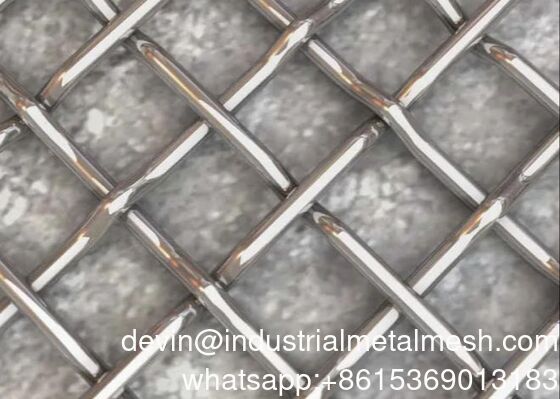

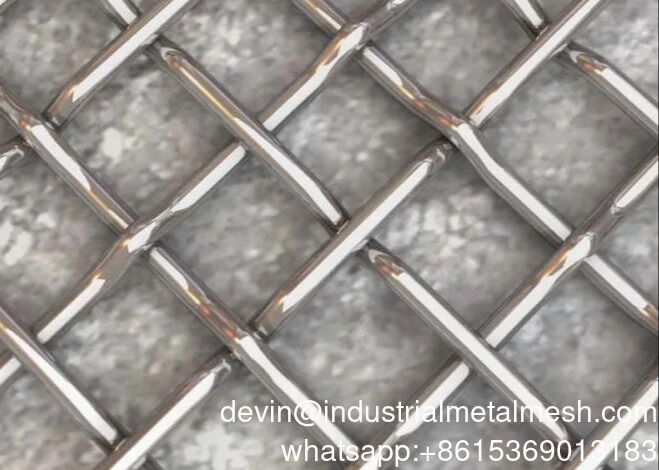

Woven Stainless Steel Crimped Wire Mesh, for Industrial, Material Grade: 304/316

Woven Stainless Steel Crimped Wire Mesh, for Industrial, Material Grade: 304/316

Crimped woven wire mesh is made of high quality carbon steel wire, stainless steel wire, galvanized steel wire and other materials. It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications.

The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth.

The crimped woven wire mesh has various applications. The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining, coal, crusher and other industries. The light crimped woven wire mesh with thinner wire diameter and small opening size can be used as barbecue grill mesh, pig feeding, protective fences for the equipment and stairs.

Flat top crimped woven wire mesh

Flat top crimped

Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen. It is widely used in the vibrating screen.

Lock crimped woven wire mesh

Lock crimped

Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.

Double crimped woven wire mesh

Double crimped

Double crimped is also called plain weave. Different from the intermediate crimped, both the warp wire and weft wire are woven directly by straight wire. We can get a rigid construction through evenly crimp in warp and weft wire. The wires are under crimped and sprung together thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen.

Intermediate crimped woven wire mesh

Intermediate crimped

Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped.

The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. The double intermediate crimped means both the weft wire and warp wire is pre-crimped and then woven together.

• Light type crimped woven wire mesh
  • Mesh size: 2 mesh - 22 mesh.
  • Width: 1m - 2m.
  • Length: 30m.
• Heavy duty crimped wire mesh panel
  • Mesh size: 2mm - 30mm.
  • Wire diameter: 1mm - 6mm.
  • Width: 1m.
  • Length: 2m.
• Rectangle pig raising mesh
  • Material: carbon steel wire, galvanized steel wire and stainless steel wire.
  • Wire diameter: 3.8mm - 8mm.
  • Opening size: 10mm × 50mm, 11mm × 50mm, 8mm × 50mm
  • Mesh width: max. 2m.
• Barbecue grill mesh
  • Wire diameter: 0.4mm - 3.0mm.
  • Aperture size: 1mm - 15mm.
  • Mesh diameter: 230mm, 240mm, 260mm, 270mm, 280mm, 300mm, 350mm, 400mm, 500mm.

Features
Corrosion and rust resistance.
Acid and alkali resistance.
Strong structure. Pre-weaving crimped wire.

Applications

• Crimped woven wire cloth can be used as pig raising mesh.
• Crimped woven wire mesh can be used for the protective screens for the machines.
• Crimped woven wire mesh can be used as fences for the workshops, stairs.
• Crimped woven wire cloth can be used as barbecue grill mesh for the restaurants, camping and travels.
• Heave duty crimped woven wire mesh can be used as the woven wire vibrating screen in the mining, coal and other industries.

The applications of crimped wire mesh are wide-ranging and include industries such as construction, mining, agriculture, and transportation. In construction, it is often used for reinforcement in concrete structures, fencing, and barriers, as well as for decorative purposes in architecture. In the mining industry, crimped wire mesh is commonly used for screening and separating materials, providing filtration and support for mine shafts. In agriculture, it serves as a reliable solution for animal enclosures, crop protection, and fencing. In the transportation sector, crimped wire mesh can be found in highway barriers and safety fences, offering protection and durability.

In summary, crimped wire mesh is a robust and adaptable material with a wide range of uses across various industries. Its unique weaving patterns and material options make it an ideal choice for numerous applications requiring strength, flexibility, and durability.
