Single, Double, Flat, Compressed & Multi-Layer Titanium Knitted Weaving Wire Mesh

Single, Double, Flat, Compressed & Multi-Layer Titanium Knitted Weaving Wire Mesh

Titanium Knitting Wire Mesh for gas-liquid and foam filtration is a corrosion-resistant mesh formed by interlooping fine titanium wires into a flexible, compressible structure. It is commonly used in demisters, mist eliminators, and foam breakers. Typical specifications include wire diameters from 0.08 mm to 0.3 mm, mesh widths from 40 mm to 600 mm, and lengths up to 30 meters per roll. The mesh can be single- or multi-layered, with densities ranging from 128 kg/m³ to 600 kg/m³, depending on the separation efficiency required.

Weaving Style

• Single Knitting Mesh: Made from a single wire. Light and used for basic filtration or shielding.
• Double Knitting Mesh: Two wires knitted together. Thicker and stronger, ideal for high-pressure filters.
• Flat Knitted Mesh: Woven into flat strips. Used in demisters, gas-liquid separation, and EMI shielding.
• Compressed Knitted Mesh: Mesh is compacted into blocks, rings, or discs for filters and structured packing.
• Layered Knitting Mesh: Multiple layers stacked for better filtration. Used in air/oil filters and silencers.

Common Specifications

• Material: Pure Titanium Grade 1 or Grade 2
• Wire Diameter: 0.08 mm – 0.3 mm
• Mesh Width: 40 mm – 600 mm
• Roll Length: 5 m – 30 m per roll
• Mesh Thickness: 0.3 mm – 1.2 mm (single layer)
• Layer Structure: Single, double, or multi-layered (up to 9 layers)
• Density: 128 kg/m³ – 600 kg/m³
• Opening Size: Variable, generally 1 mm – 4 mm (approximate due to looped structure)
• Shape Options: Flat mesh, gaskets, pads, rolls, or cylindrical cartridges
• Operating Temperature: Up to 800°C
• Filtration Efficiency: 98% – 99.8% for gas-liquid separation
• Surface Treatment: As-drawn or annealed
• Compression Rate: Up to 70% without deformation
• Standard Packing: Rolls or cut-to-size sheets in PE film or cartons
• These values can be customized for industrial demisters, foam breakers, catalytic carriers, and shielding components in aggressive chemical or high-temperature environments.

Titanium Knitted Mesh for Medical Devices

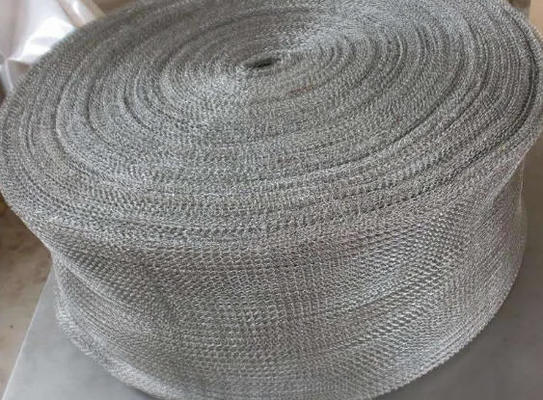

Densely knitted titanium mesh rolls are primarily designed for medical device components. This mesh features finer loops with a wire diameter of around 0.08 to 0.15 mm, widths of approximately 50 to 200 mm, and high-density weaving. Its primary use is in medical implants and filtration components due to its biocompatibility, durability, and outstanding corrosion resistance.

Titanium Knitted Mesh for Industrial Gas-Liquid Separation

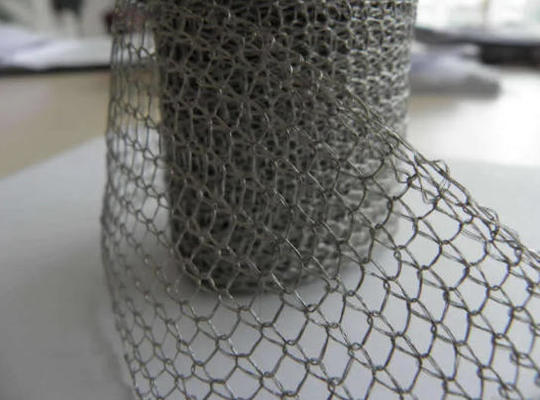

Titanium knitted mesh with clearly visible loops and uniform openings of approximately 1 to 2 mm is ideal for industrial gas-liquid separation. Typically, wire diameters range from 0.1 to 0.2 mm. This structure is well-suited for industrial scenarios requiring efficient gas-liquid separation, mist elimination, or foam breaking due to its inherent compressibility and effective filtering efficiency.

Titanium Knitted Mesh for Aerospace Filtration
Titanium knitted mesh with an open-loop structure is specifically designed for aerospace filtration systems. The wire diameter generally ranges from 0.08 mm to 0.25 mm, featuring wider apertures of approximately 2 to 4 mm. This type of mesh is valued in aerospace applications for its lightweight construction, high strength-to-weight ratio, and exceptional resistance to extreme temperatures.
